Rensa FG Series MERV 11, 13, 14, and 15 Fiberglass Extended Surface Pocket Filter

PART FG
SUPPLIER ---
SUPPLIER PART # ---
-- Select -- MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15
-- Select -- Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8 Standard 7/8
-- Select -- 12x24x30 12x24x12 12x24x18 12x24x22 12x24x22 24x24x22 20x20x15 20x20x30 20x24x30 20x25x22 20x25x22 24x24x15 24x24x22 24x24x22 24x24x22 24x24x24 24x24x30 24x24x30 24x24x30 12x20x30 12x24x15 20x20x30 20x24x22 24x24x15 24x24x18 24x24x22 24x24x22 24x24x26 24x24x26 24x24x30 24x24x30 12x20x30 12x24x15 12x24x15 12x24x22 16x25x12 20x20x30 24x24x15 24x24x15 24x24x15 24x24x22 24x24x22 24x24x22 24x24x22 24x24x22 24x24x26 24x24x26 24x24x30 24x24x32 12x24x15 12x24x22 20x25x22 24x20x22 24x24x12 24x24x15 24x24x15 24x24x22 24x24x30
-- Select -- 5 3 4 3 4 4 5 5 5 6 6 6 8 10 10 6 6 6 10 5 4 5 6 8 6 8 10 8 10 8 8 5 3 4 3 5 5 6 8 10 6 8 10 10 10 8 10 10 10 3 3 5 6 6 6 8 6 6
-- Select -- None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None None Loops, 2 Corners None None Loops, 2 Corners None None None Loops, 2 Corners Loops, 2 Corners None None None None None None None None None None
-- Select -- Upstream None None None None None None Upstream None Upstream None None None Upstream None None Upstream None Upstream Upstream None Upstream None None Upstream Upstream None Upstream Upstream Upstream None Upstream None None None None Upstream None None None None None None Upstream None Upstream None None None None None None None None None None Upstream None
Calculating price...
QUANTITY

About this item

The Rensa FG Series Extended Surface Pocket Filters provide high-efficiency air filtration using a biosoluble fiberglass media and a rigid, durable pocket design. Available in MERV 11, 13, 14, and 15 efficiencies, the FG Series features dual-stage filtration for enhanced depth loading and longer service life. Pockets are double-lock-stitched with thermoplastically sealed stitch lines to prevent leakage, ensuring consistent performance even in demanding HVAC environments.

Each filter incorporates a galvanized steel header for structural integrity and compatibility with a wide range of housings, and is offered in multiple widths, lengths, and pocket depths to meet diverse application needs. Ideal for commercial buildings, data centers, industrial facilities, and institutional HVAC systems, FG Series filters deliver dependable performance and energy-efficient air quality improvement.

  • Available in MERV 11, 13, 14 & 15 efficiencies
  • Dual stage filtration for enhanced depth loading
  • Pockets are double lock stitched with thermoplastically sealed stitch lines to prevent leakage
72571_FG_MERV11
72571_FG_MERV11.pdf
72571_FG_MERV13
72571_FG_MERV13.pdf
72571_FG_MERV14
72571_FG_MERV14.pdf
72571_FG_MERV15
72571_FG_MERV15.pdf

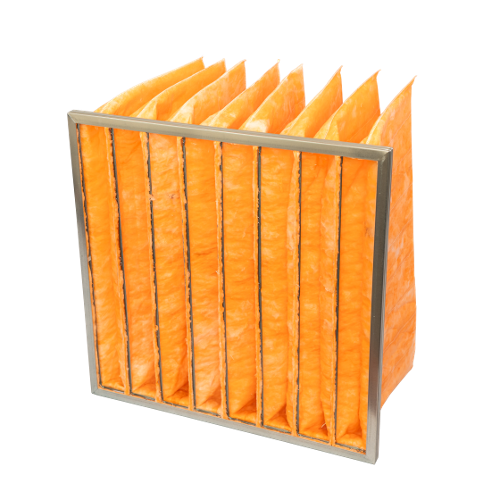

Merv Rating MERV 11

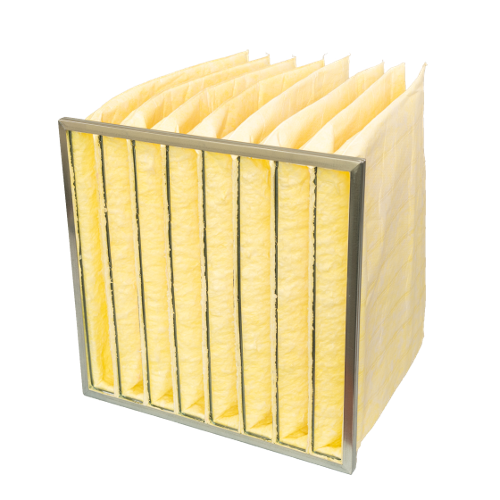

Merv Rating MERV 14

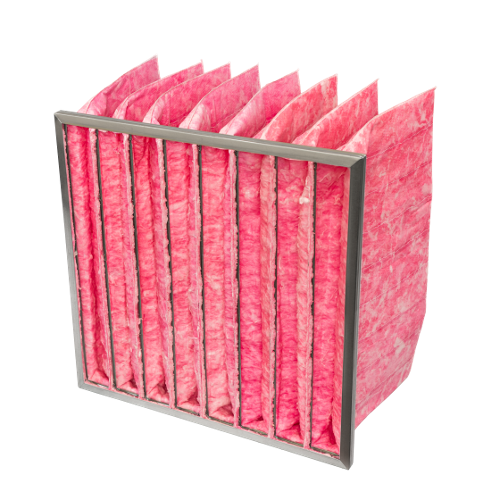

Merv Rating MERV 13
Merv Rating MERV 15
Rated Face Velocity 500 FPM (All variants)
Initial Resistance
  • 24x24x22; 8 pockets; MERV 11 @ 2000 CFM = .28 In. W.G.
  • 24x24x22; 8 pockets; MERV 13 @ 2000 CFM = .48 In. W.G.
  • 24x24x22; 8 pockets; MERV 14 @ 2000 CFM = .61 In. W.G.
  • 24x24x22; 8 pockets; MERV 15 @ 2000 CFM = .61 In. W.G.
    •
    Recommended Final Resistance 1.5 In. W.G. (All variants)
    Continuous Operating Temperature 200°F
    Pocket Offerings 3 - 12 (Dependent on frame size)
    MERV Rating MERV 11, 13, 14 & 15 efficiences are available
    Construction
  • Extended surface pocket filter
  • Galvanized metal header for rigidity and corrosion resistance
  • Pockets feature double locked stitching w/thermoplastically sealed stitch lines
    •
    Media
  • Ultra-fine, biosoluble glass fiber media
  • Dual stage filtration to enhance depth loading
    •
    Applications Hospitals, schools, office complexes, data centers and more
