Parker PEACH-Pure™ PCLAS Series Classifier Liquid Depth Cartridge Filter

PART PCLAS
SUPPLIER ---
SUPPLIER PART # ---
-- Select -- 5 10 125 25 50 5 25 25 75 5 10 25 2 5 10 125 25 75 125 5 10 125 25 50 75 75 75 2 10 125 125 75 10 2 5 10 5 25 25 25 5 10
-- Select -- 9.75 in. 9.75 in. 9.75 in. 9.75 in. 9.75 in. 10 in. 10 in. 10 in. 10 in. 19.5 in. 19.5 in. 19.5 in. 20 in. 20 in. 20 in. 20 in. 20 in. 20 in. 20 in. 29.25 in. 29.25 in. 29.25 in. 29.25 in. 29.25 in. 29.25 in. 29.25 in. 29.25 in. 30 in. 30 in. 30 in. 30 in. 30 in. 30 in. 39 in. 39 in. 39 in. 40 in. 40 in. 40 in. 40 in. 40 in. 40 in.
-- Select -- 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST Polyester 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST Polyester 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST Polyester 304 SST 304 SST 304 SST Polyester 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST 304 SST Polyester 304 SST 304 SST 304 SST 304 SST
-- Select -- None None None None None None None None None None None None None None None None None None None None None None None None None EPR EPR None None None None None None None None None None None None None None None
-- Select -- Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End DOE W/Polypropylene Extender Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End 222-Flat Single Open End 222-Flat Single Open End Double Open End Double Open End Double Open End Double Open End Double Open End DOE W/Polypropylene Extender Double Open End Double Open End Double Open End Double Open End Double Open End Double Open End Polypro Spring Closed Top Open End Bottom Polypro Spring Closed Top Open Bottom Polypro Extender Polypro Spring Closed Top Open Bottom Polypro Extender
Calculating price...
QUANTITY

About this item

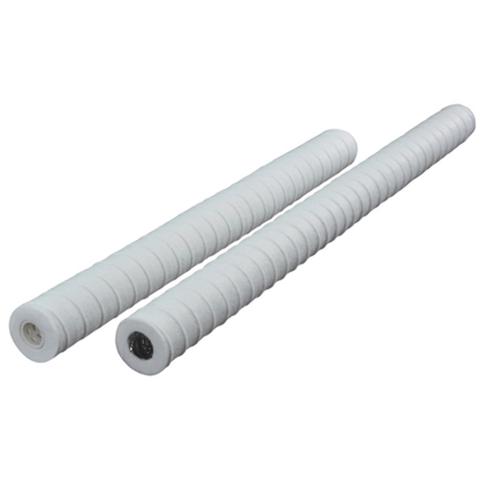

The Parker PEACH-Pure™ PCLAS Series provides consistent classifier-style filtration for adhesives, inks, paints, machining fluids, and other high-viscosity liquids. Built with resin-free, 100% synthetic polyester media and Parker’s PEACH depth technology, PCLAS cartridges maintain targeted particle retention without stripping critical properties from fluids. With micron ratings from 2 to 200 µm, rigid thermal-bonded construction, and an environmentally friendly design, PCLAS filters offer a sustainable replacement for discontinued resin-bonded cartridges like Parker ProBond™ and competitor equivalents.

  • Micron ratings from 2 to 200 µm
  • Lengths from 9.75" to 40"
  • Polyester media with thermally bonded 3-stage classification
  • Silicone free construction
  • Max temperature: 240°F (116°C); 180°F (82°C) for select end caps
  • Differential pressure: Up to 85 psid (steel core); 50 psid (plastic core)
  • Classified filtration avoids over-stripping batch fluid components
  • Formaldehyde- and resin-free; environmentally sustainable design
69961_DS_PEACHPURE_PCLAS
69961_DS_PEACHPURE_PCLAS.pdf
Micron Rating 2, 5, 10, 25, 50, 75, 125, 200
Length 9.75" to 40"
Outer Diameter 2.5"
Inner Diameter 1.08"
Flow Direction Outside-to-Inside
Filter Media PEACH Depth Technology – Polyester
Core Polyester or 304 Stainless Steel
End Cap Options Multiple options avaiable from DOE to SOE
Seal Materials None, Buna-N, EPR, Viton, Silicone
Max Temperature 240°F (116°C), 180°F (82°C) for specific end caps
Max Differential Pressure 85 psid with steel core, 50 psid with plastic core
Recommended Change-Out DP 50 psid with steel core, 25–30 psid with plastic core
pH Range 3–9
Certifications Resin-free, formaldehyde-free, environmentally friendly
