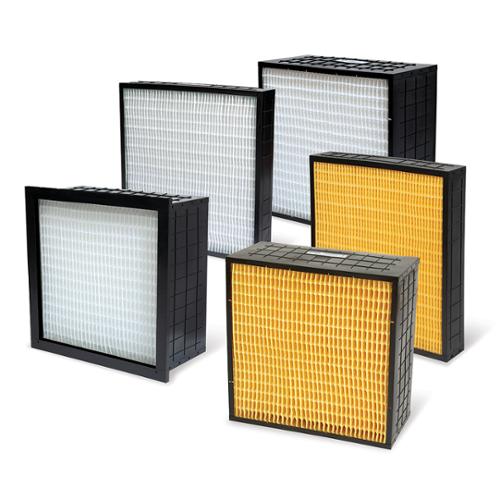

The Parker LoadTECH® 12″ MERV 11 Extended Rigid Cell Filter is engineered with proprietary E-Pleat® media technology, which directs airflow efficiently for enhanced dust loading and longer filter life. Designed for energy savings and reduced total cost of ownership, LoadTECH® filters deliver low initial resistance, high capacity, and reliable performance in commercial HVAC systems. Constructed with a durable high-impact polystyrene (HIPS) frame, LoadTECH® filters are available in both box and single header designs. Total Filtration Services (TFS) supplies Parker LoadTECH® filters to support HVAC needs in schools, healthcare, data centers, food processing, and other demanding environments.
- Proprietary E-Pleat® media for efficient airflow and dust capture
- Synthetic media resists tearing, moisture, and microbial growth
- Box or Single Header construction
- Low initial resistance with airflow capacity from 1000–2000 CFM
- Made with high-impact polystyrene (HIPS) frame
- Continuous operating temperature up to 170°F (77°C)
Merv Rating
MERV 11
Nominal Depths
12"
Rated Face Velocity
500 FPM
Recommended Final Resistance
1.50" W.G. (Box & Single Header)
Continous Operating Temparature
170°F (77°C)
Initial Resistance
24x24x12 (Box) @ 2000 CFM = .17" W.G.24x24x12 (Single Header) @ 2000 CFM = .19" W.G.
Rated Air Flow Capacity (CFM)
24x24x12 = 2000 CFM (Box or Single Header)
Merv Rating
MERV 11
Construction
Box and single header styles are availableHigh-impact polystyrene (HIPS) frameFully incinerable
Classifications
UL 900 for flammability
Media
Proprietary E-Pleat synthetic media Enhanced dust holding capacity
