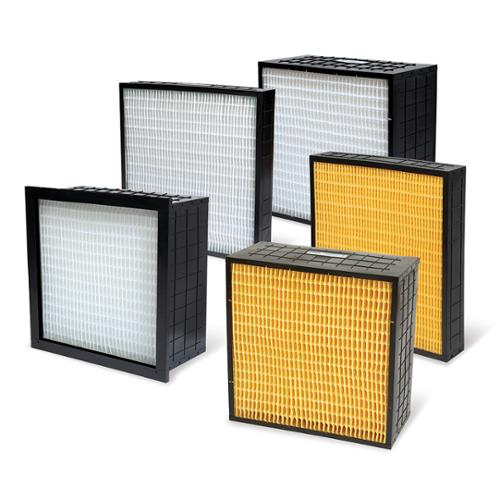

The Parker LoadTECH® 12″ MERV 14 Extended Rigid Cell Filter is engineered with proprietary E-Pleat® media technology, delivering enhanced dust holding and airflow efficiency that rivals the performance of 4-V filters. The MERV 14 model supports LEED certification potential by providing superior particle capture for demanding environments such as hospitals, clean manufacturing, data centers, and high-occupancy facilities. Constructed with a durable high-impact polystyrene (HIPS) frame, LoadTECH® filters combine long service life, reduced energy use, and consistent performance. Total Filtration Services (TFS) supplies Parker LoadTECH® filters in both box and single header designs to support commercial and industrial HVAC systems.
- Proprietary E-Pleat® media with gold synthetic embossed design
- Captures dust efficiently and resists microbial growth, tearing, and moisture
- Rivals the performance of 4-V filters with extended filter life
- Airflow capacity from 1000–2000 CFM with low initial resistance
- Constructed with incinerable HIPS frame and lightweight design
- Helps earn LEED credits with MERV 14 efficiency
Nominal Depths
12"
Rated Face Velocity
500 FPM
Recommended Final Resistance
1.50" W.G. (Box & Single Header)
Continous Operating Temparature
170°F (77°C)
Initial Resistance
24x24x12 (Box) @ 2000 CFM = .29" W.G.24x24x12 (Single Header) @ 2000 CFM = .38" W.G.
Rated Air Flow Capacity (CFM)
24x24x12 = 2000 CFM (Box or Single Header)
Merv Rating
MERV 14
Construction
Box and single header styles are availableHigh-impact polystyrene (HIPS) frameFully incinerable
Classifications
UL 900 for flammability
Media
Proprietary E-Pleat synthetic media Enhanced dust holding capacity
