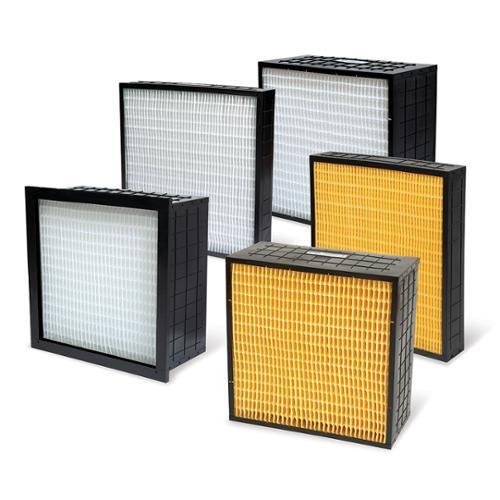

Parker LoadTECH 12" Depth MERV 15/15A Box & Single Header Extended Rigid Cell Filter with E-Pleat® Media

PART PLT12-M15
SUPPLIER ---
SUPPLIER PART # ---
-- Select -- Box Single Header Box Single Header Box Single Header Box Single Header
-- Select -- 12x24x12 12x24x12 24x24x12 24x24x12 20x20x12 20x20x12 20x24x12 20x24x12
Calculating price...
QUANTITY

About this item

The Parker LoadTECH® 12″ MERV 15/15A Extended Rigid Cell Filter is engineered with proprietary E-Pleat® media technology, delivering superior airflow efficiency, dust holding, and mechanical performance. Tested to ASHRAE 52.2 with Appendix J, the MERV 15/15A model provides consistent high efficiency over its service life, making it ideal for healthcare, cleanrooms, laboratories, and other critical environments. Constructed with a high-impact polystyrene (HIPS) frame, LoadTECH® filters combine durability, reduced energy use, and long service life. Total Filtration Services (TFS) supplies Parker LoadTECH® filters in both box and single header designs to support demanding HVAC systems.

  • Proprietary E-Pleat® media with embossed gold synthetic design
  • Mechanical efficiency tested per ASHRAE 52.2 with Appendix J
  • High dust holding capacity and low initial resistance
  • Available in box or single header construction
  • Fully incinerable HIPS frame and lightweight design
  • LEED compliant with MERV 15/15A efficiency
71827_HVAC_12_LoadTech_MERV_15_15A
71827_HVAC_12_LoadTech_MERV_15_15A.pdf
Nominal Depth 12"
Rated Face Velocity 500 FPM
Recommended Final Resistance 1.50" W.G. (Box & Single Header)
Continuous Operating Temperature 170°F (77°C)
Initial Resistance
  • 24x24x12 (Box) @ 2000 CFM = .29" W.G.
  • 24x24x12 (Single Header) @ 2000 CFM = .39" W.G.
  • Rated Airflow Capacity 24x24x12 = 2000 CFM (Box or Single Header)
    MERV Rating 15/15A
    Construction
  • Box and single header styles are available
  • High-impact polystyrene (HIPS) frame
  • Fully incinerable
  • Classifications UL 900 for flammability
    Media
  • Proprietary E-Pleat synthetic media
  • Enhanced dust holding capacity
