Aeolus SMP MiniPleat MERV 11-16 Fully Synthetic Panel Filter

PART SMP
SUPPLIER ---
SUPPLIER PART # ---
-- Select -- MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 11 MERV 12 MERV 12 MERV 12 MERV 12 MERV 12 MERV 12 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 14 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 13 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15 MERV 15
-- Select -- Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic
-- Select -- 16x20x4 16x25x2 16x20x2 20x20x2 20x20x4 20x25x2 20x25x4 24x12x2 24x12x4 20x24x2 24x20x4 24x24x2 24x24x4 16x20x2 16x25x2 20x20x2 20x25x2 24x12x2 24x24x2 16x20x2 16x25x2 20x20x2 20x25x2 24x12x2 24x12x4 24x20x2 24x20x4 24x24x2 24x24x4 16x20x4 16x25x4 20x20x4 20x24x4 20x25x4 24x12x4 24x20x4 24x24x4 16x20x4 16x25x2 16x25x4 20x20x2 20x20x4 20x25x2 20x25x4 24x12x2 24x12x4 24x20x2 24x20x4 24x24x2 24x24x4 24x12x4 16x20x2 16x25x4 20x20x2 20x25x2 20x25x4 24x20x2 24x24x2 24x24x4
Calculating price...
QUANTITY

About this item

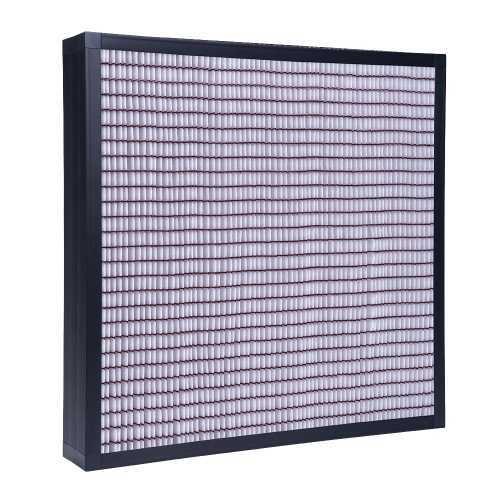

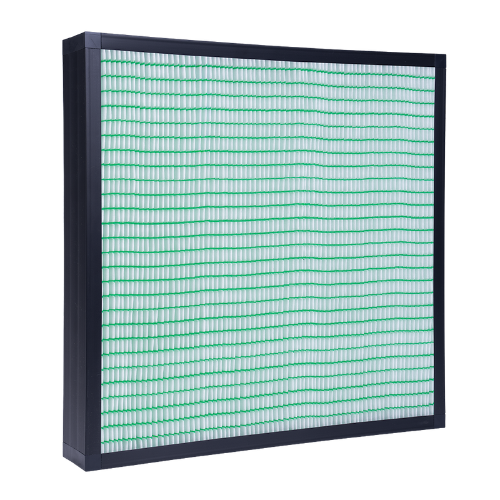

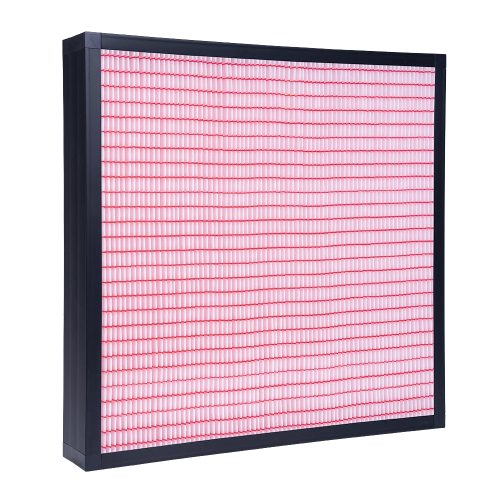

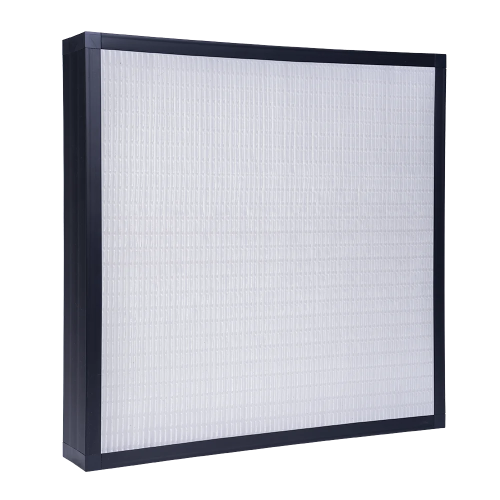

The Aeolus MiniPleat Synthetic Panel Filters combine compact design with superior performance to deliver reliable, long-term filtration in HVAC and process-air systems. Available in 2-inch and 4-inch depths, both versions feature fully synthetic microfiber media with a progressive, 3-D structure for exceptional dust-holding capacity, low resistance, and consistent airflow.

Produced through a solvent-free, melt-based process with no chemical binders, Aeolus filters are completely non-shedding, hydrophobic, and resistant to microbial growth. Each model is designed to maintain its rigid frame integrity under variable load conditions while offering LEED-supportive efficiency and reduced waste from fewer changeouts.

  • Available in 2" and 4" depths
  • Rated face velocity: 500 FPM
  • Efficiency range from MERV 11 to MERV 16
  • Recommended final resistance: 1.50" W.G.
  • High capacity synthetic media with low pressure drop
  • Fully hydrophobic, antimicrobial, and non-shedding
  • Operating temp: up to 175°F (short term to 210°F)
73500_AEOLUS_2inch_MiniPleat
73500_AEOLUS_2inch_MiniPleat.pdf
73500_AEOLUS_4inch_MiniPleat
73500_AEOLUS_4inch_MiniPleat.pdf
Merv Rating MERV 11
Merv Rating MERV 14
Merv Rating MERV 13
Merv Rating MERV 16
Merv Rating MERV 15
Merv Rating MERV 12
Nominal Depths 2" and 4"
Rated Face Velocity 2" - 500 FPM
4" - 500 FPM
Recommended Final Resistance 1.50" W.G.
Continous Operating Temparature Up to 175°F (80°C), short term 210°F (100°C)
Pleat Count N/A
Capacity High Capacity
Merv Rating MERV 11 to MERV 16
Style MiniPleat Panel
